Azure DevOps

Prerequisites

Before you begin, ensure you have the following:

An existing Azure DevOps repository
The SCANOSS Code Scan task installed from the Azure Marketplace
A valid SCANOSS API key (required only for enterprise features)

How It Works

The SCANOSS Code Scan task runs inside your Azure Pipeline and scans your codebase for security vulnerabilities and licence compliance issues. On pull requests, it posts a summary comment and creates check statuses directly on the PR. When triggered manually or on a schedule, results are uploaded as pipeline run artefacts.

Configuration

Repository Permissions

The SCANOSS task uses the Azure API to create checks and post comments on pull requests. Before using it, configure the required permissions on your repository:

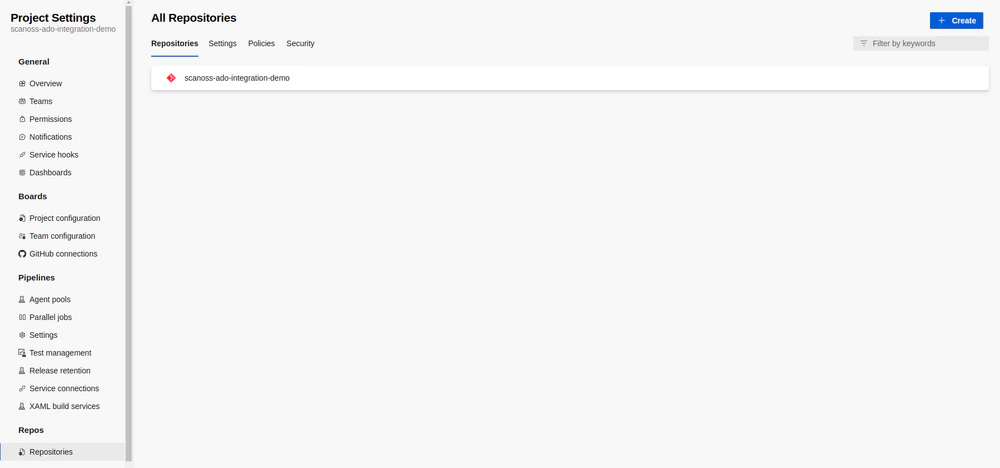

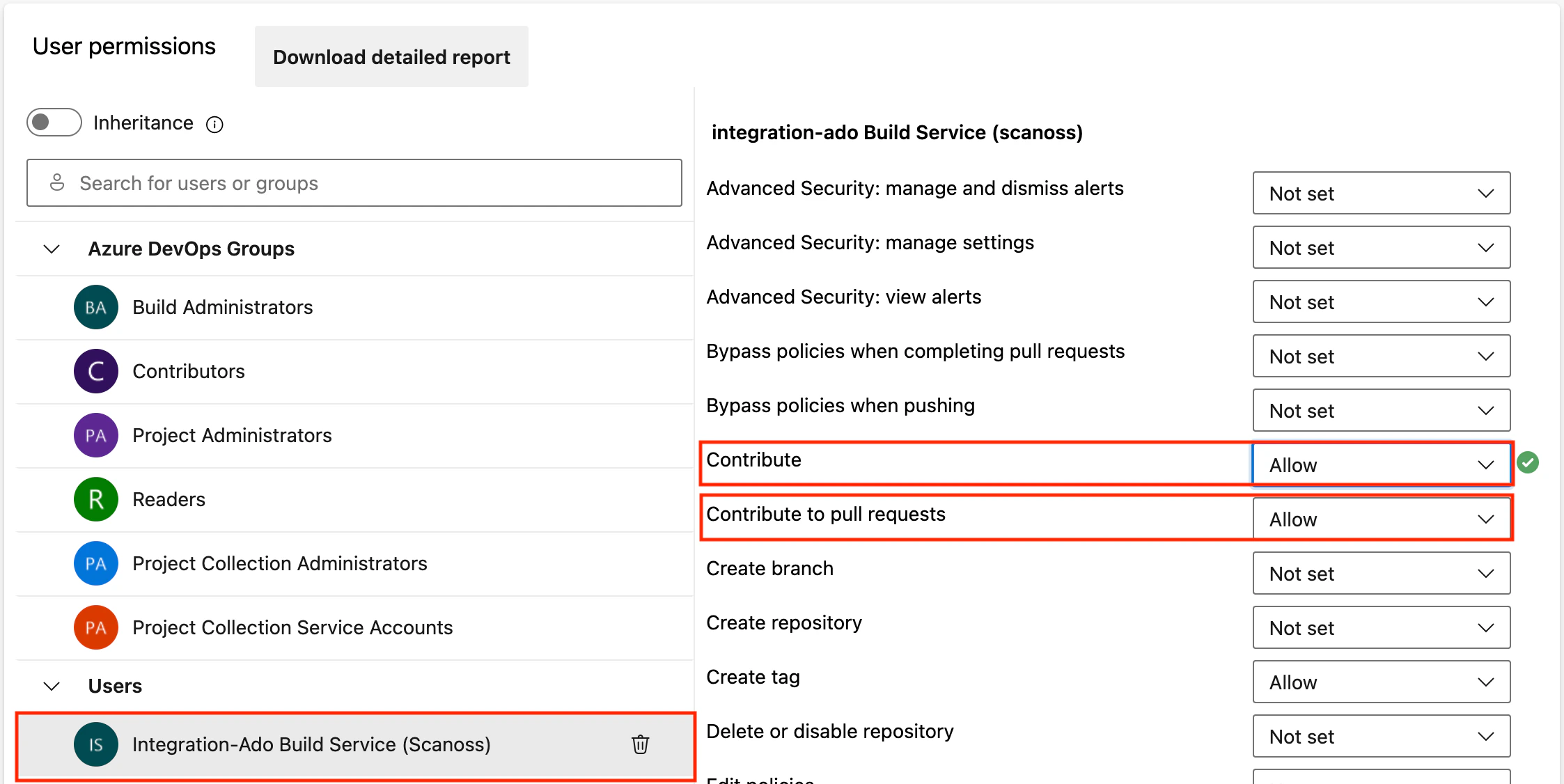

Navigate to Project Settings → Repositories and select your repository.

Open the Security tab.
Under the Users group, select the repository Build Service account.
Set both Contribute to pull requests and Contribute permissions to Allow.

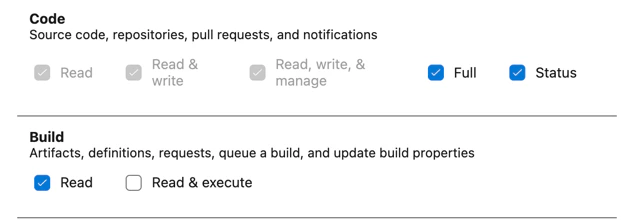

Personal Access Token (PAT)

A Personal Access Token is only required when the pipeline setting Limit job authorisation scope to current project for non-release pipelines is set to OFF. If this setting is ON, no PAT is needed. When a PAT is required, create one with the minimum necessary permissions and pass it via the adoPat input parameter.

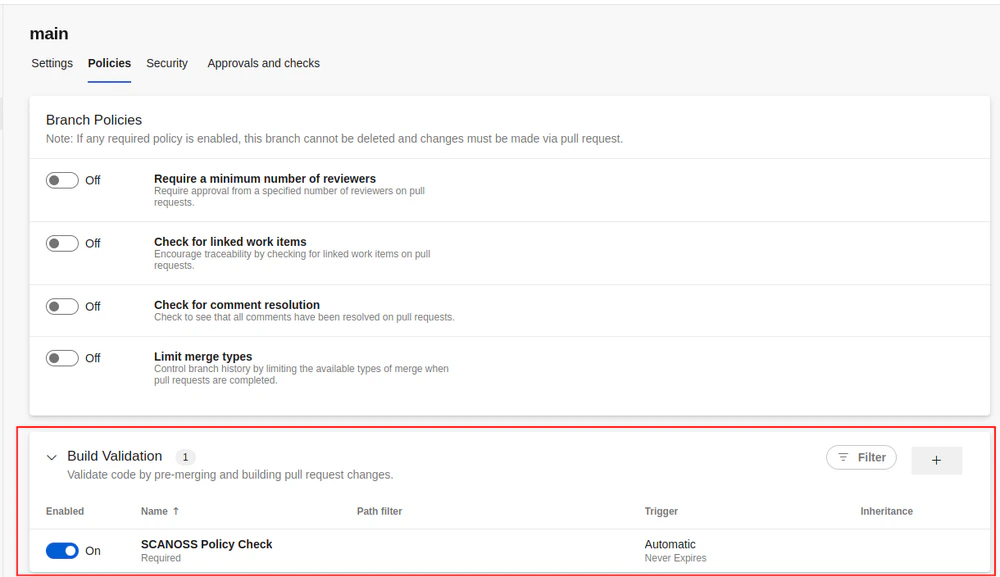

Build Validation Policy

To automatically trigger the pipeline on pull requests:

Open the Policies tab for your repository.
Select the target branch under Branch Policies.
Add a new Build Validation policy and configure the following fields:
- Build Pipeline: Select your pipeline.
- Trigger: Set to Automatic.
- Policy Requirement: Select the appropriate option.
- Build Expiration: Select the appropriate option.
- Display Name: Set a descriptive name.

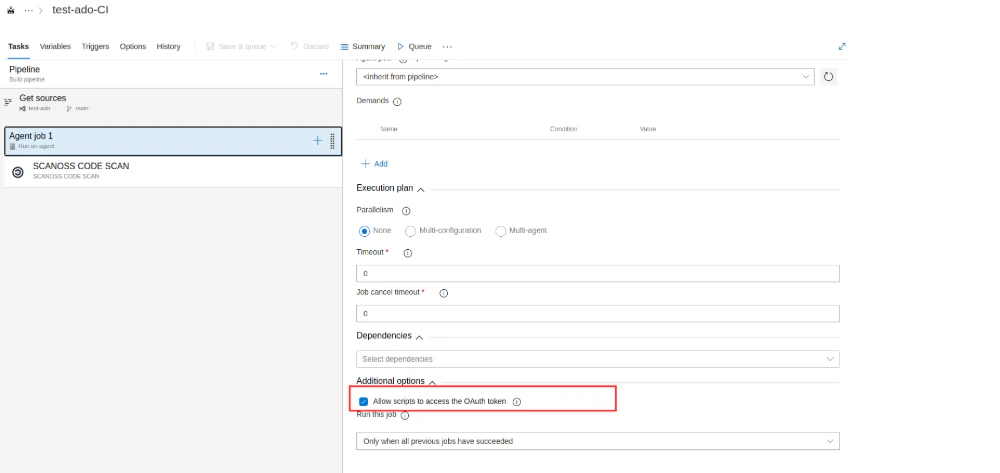

Azure Agent Jobs

If using an Azure-hosted agent job, ensure the Allow scripts to access OAuth token option is enabled. The task requires access to the System Access Token to post results to the PR.

Basic Pipeline Setup

The following is a minimal pipeline configuration that triggers the SCANOSS Code Scan task on pull requests to main:

trigger: none

pr:
  - main

pool:
  vmImage: ubuntu-latest

variables:
  HTTP_PROXY: $(HTTP_PROXY_URL)
  HTTPS_PROXY: $(HTTPS_PROXY_URL)

steps:
  - checkout: self
    persistCredentials: true

  - task: scanoss@1.3.0
    displayName: "SCANOSS Code Scan"
    inputs:
      # apiKey: $(APIKEY)
      # apiUrl: 'https://api.scanoss.com/scan/direct'
      policies: copyleft,undeclared
      policiesHaltOnFailure: false
      dependenciesEnabled: true
      dependenciesScope: prod

Minor versions can be pinned by specifying the full version after the @ symbol (e.g., scanoss@1.3.0). Refer to the Azure task versioning documentation for further details.

Scanning a Subdirectory

By default, SCANOSS scans the entire repository root. Use the scanPath parameter to restrict scanning to a specific subdirectory within the repository. This is useful for monorepos or when only part of the codebase needs to be scanned.

steps:
  - checkout: self
    persistCredentials: true

  - task: scanoss@1
    displayName: "SCANOSS Code Scan"
    inputs:
      scanPath: "services/backend"
      policies: copyleft,undeclared
      policiesHaltOnFailure: false

The path must be relative to the repository root. Absolute paths and directory traversal using .. are not permitted and will cause the task to fall back to scanning the root (".") with a warning.

Task Input Parameters

The SCANOSS Code Scan task accepts the following input parameters to customise scanning behaviour. For the latest and most complete list of parameters, refer to the SCANOSS ADO source repository.

Parameter	Description	Required	Default
`outputFilepath`	Scan output file name	Optional	`results.json`
`scanPath`	Relative path within the repository to scan. Must be a relative path — absolute paths and `..` traversal are not permitted.	Optional	`.`
`dependenciesEnabled`	Enable or disable dependency scanning	Optional	`false`
`dependenciesScope`	Dependency scope to scan (`dev` or `prod`)	Optional	—
`dependenciesScopeInclude`	Comma-separated list of dependency scopes to include	Optional	—
`dependenciesScopeExclude`	Comma-separated list of dependency scopes to exclude	Optional	—
`policies`	Comma-separated list of active policies (`copyleft`, `undeclared`, `deptrack`)	Optional	—
`policiesHaltOnFailure`	Halt the pipeline on policy failure. Set to `false` to report without failing	Optional	`true`
`depTrackEnabled`	Enable Dependency Track SBOM upload and status reporting	Optional	`false`
`depTrackUrl`	Dependency Track server URL	Optional	—
`depTrackApikey`	Dependency Track API key	Optional	—
`depTrackProjectId`	UUID of an existing Dependency Track project	Optional	—
`depTrackProjectName`	Dependency Track project name	Optional	—
`depTrackProjectVersion`	Dependency Track project version	Optional	—
`apiUrl`	SCANOSS API URL	Optional	`https://api.osskb.org/scan/direct`
`apiKey`	SCANOSS API key	Optional	—
`runtimeContainer`	Runtime container image URL	Optional	`ghcr.io/scanoss/scanoss-py:v1.46.0`
`licensesCopyleftInclude`	Copyleft licences to append to the default list	Optional	—
`licensesCopyleftExclude`	Copyleft licences to remove from the default list	Optional	—
`licensesCopyleftExplicit`	Explicit list of copyleft licences to use instead of the default list	Optional	—
`skipSnippets`	Skip snippet scanning (requires `scanFiles` to be enabled)	Optional	`false`
`scanFiles`	Enable or disable file and snippet scanning	Optional	`true`
`scanossSettings`	Use a SCANOSS settings file for scanning	Optional	`true`
`settingsFilepath`	Path to the SCANOSS settings file	Optional	`scanoss.json`
`debug`	Enable debug logging	Optional	`false`
`adoPat`	Azure DevOps Personal Access Token	Optional	—

Policy Checks

The SCANOSS Code Scan task supports three configurable policies to enforce compliance automatically on pull requests:

Copyleft (copyleft) — Detects components or code snippets associated with copyleft licences. If found, the pull request check fails. The default copyleft licence list is defined in the SCANOSS ADO repository.
Undeclared (undeclared) — Compares detected components against those declared in your scanoss.json file. If undeclared components are found, the PR check fails.
Dependency Track (deptrack) — Queries a Dependency Track server for policy violations, including security vulnerabilities, licence violations, and compliance issues. The check reports any violations found in the pipeline. Requirements:
- Dependency Track server URL and API key
- Either a project UUID or a project name and version
- Note: the policy check runs even if SBOM upload is disabled, but will report warnings if it is querying potentially stale data.
Configuration example:
inputs: policies: copyleft,undeclared,deptrack depTrackEnabled: true depTrackUrl: "https://deptrack.example.com" depTrackApikey: $(DEPTRACK_API_KEY) depTrackProjectName: "my-project" depTrackProjectVersion: "1.0.0"

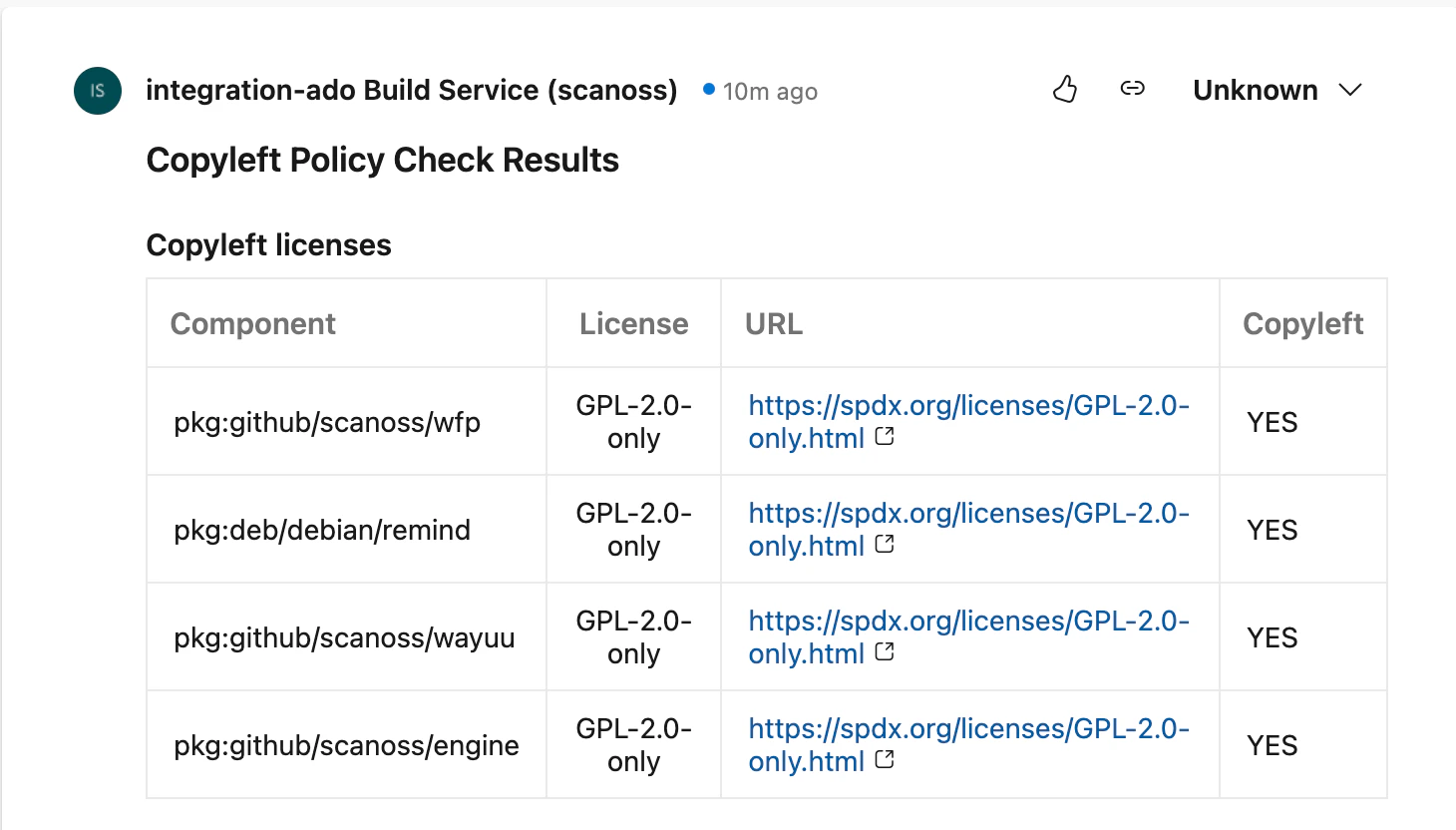

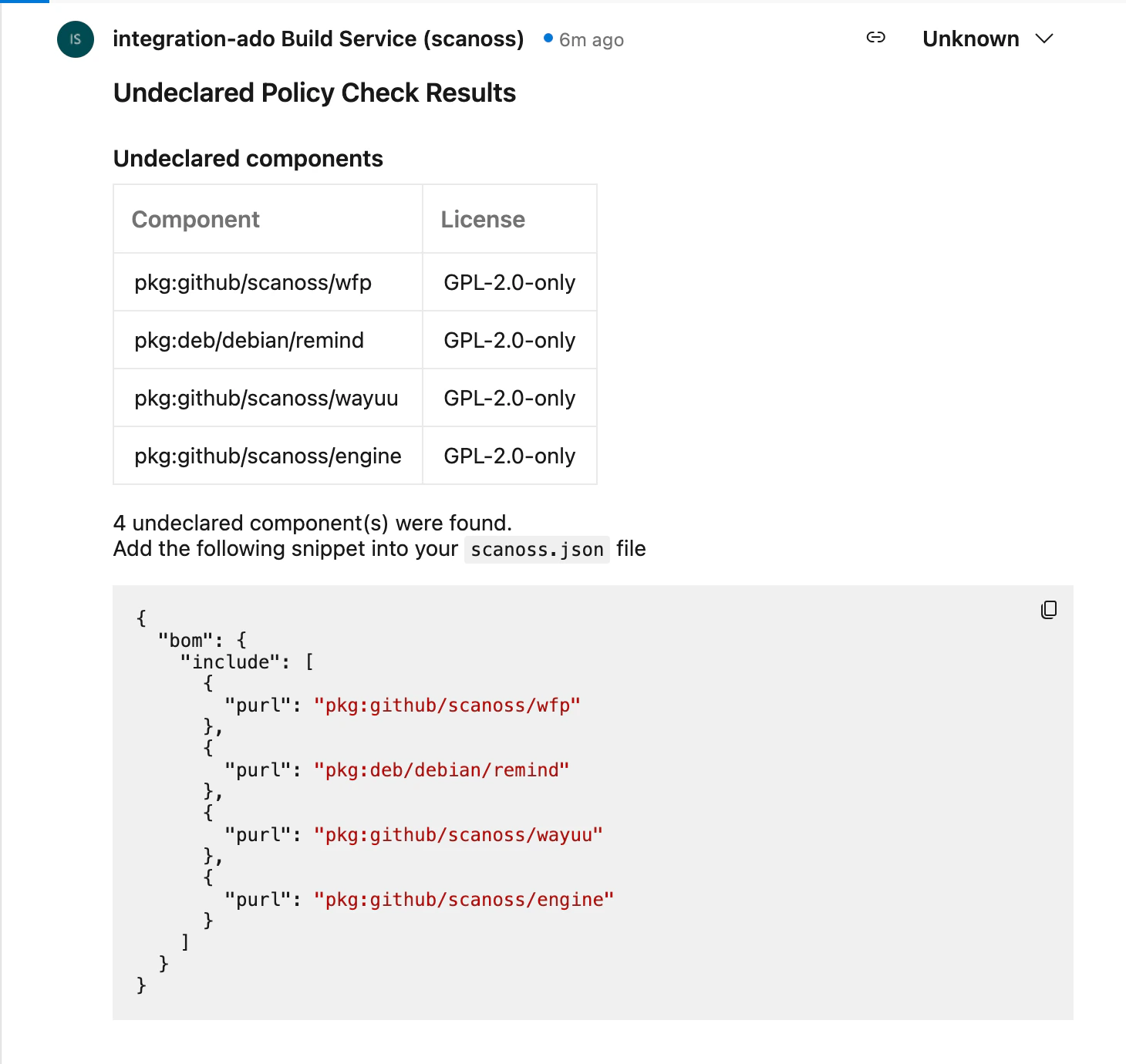

When a pull request is scanned, a comment summarising the results is automatically posted to the PR.

Proxy Configuration

If your pipeline runs behind a proxy, set the proxy environment variables and specify a self-hosted container image via the runtimeContainer parameter:

variables:
  HTTP_PROXY: http://your-proxy:8080
  HTTPS_PROXY: http://your-proxy:8080

steps:
  - task: scanoss@1.3.0
    displayName: "SCANOSS Code Scan"
    inputs:
      runtimeContainer: "<self_hosted_registry>/scanoss-py:v1.15.0"

Pipeline Triggers

In addition to pull request triggers, pipelines can be run manually or on a schedule. When triggered outside of a PR context, scan results are uploaded to the pipeline run artefacts only — no PR comments or check statuses are created. Example scheduled trigger:

schedules:
  - cron: "*/5 * * * *"
    displayName: "Run every 5 minutes"
    always: true
    branches:
      include:
        - main

Scan Tuning Parameters

The SCANOSS scan engine supports scan tuning parameters for snippet matching.

Important: Scan tuning parameters must be configured via scanoss.json. They are not available as SCANOSS ADO task input parameters.

Managing Components with scanoss.json

The scanoss.json file is used to manage your project’s software bill of materials (SBOM). It allows you to declare approved components, record triage decisions, and customise scan behaviour to enforce your organisation’s policies.

File Structure and Location

Place scanoss.json in the root of your repository so the SCANOSS task can detect it automatically:

your-repository/
├── azure-pipelines.yml
├── src/
├── scanoss.json         ← Place here and commit to Git
└── README.md

The scanoss.json file should be committed to version control. It contains component declarations and governance decisions that should be tracked and shared across your team.

scanoss.json Format

The SBOM configuration uses the following structure:

{
  "bom": {
    "include": [
      {
        "purl": "pkg:github/scanoss/scanner.c",
        "comment": "Core scanner — approved by Tech Lead on 2024-12-10"
      }
    ],
    "remove": [
      {
        "purl": "pkg:npm/express@4.17.1",
        "comment": "Old version with known vulnerabilities. Upgrade to 4.18.2+."
      }
    ]
  },
  "settings": {
    "scan": {
      "ignore": ["**/test/**", "**/node_modules/**", "**/dist/**"]
    }
  }
}

bom.include — Lists approved components. The scan verifies detected components against this list.
bom.remove — Specifies components that must not be present. The scan flags any that are detected.
settings.scan.ignore — Defines file or directory paths to exclude from the scan.

If you are migrating from an earlier version that used sbom.json, rename the file to scanoss.json and update it to the format shown above. The sbomEnabled, sbomFilepath, and sbomType parameters were removed in v1.0.0.

Step-by-Step Guide to Populating scanoss.json

Step 1: Run an Initial Scan

Trigger the pipeline without a scanoss.json file. The initial scan will detect all components in your repository and report them as undeclared.

Step 2: Review Scan Results

Once the pipeline run completes, navigate to the run in Azure Pipelines and download the scan results from the Artefacts section (results.json by default).

Step 3: Extract Component PURLs

Review the results file to identify the component PURLs detected in your codebase. These will be used to populate the bom.include section of scanoss.json.

Step 4: Create Your scanoss.json File

Create a scanoss.json file in your repository root using the PURLs identified in the previous step:

{
  "bom": {
    "include": [
      {
        "purl": "pkg:github/scanoss/scanner.c",
        "comment": "Approved component"
      }
    ]
  }
}

Step 5: Commit and Push

Add scanoss.json to version control and push to trigger the pipeline again.

Step 6: Verify the Results

After the pipeline run completes, all previously undeclared components should now be reported as declared, and no policy violations should be raised.

SBOM Export (Dependency Track)

The SCANOSS task can export your SBOM to a Dependency Track server for vulnerability and licence management. This integration provides two distinct features:

SBOM Upload Status Check

When depTrackEnabled is set to true, the task uploads a CycloneDX SBOM to your Dependency Track server and reports the upload status as a separate PR status check. This includes:

Success/failure status — Indicates whether the SBOM was uploaded successfully.
Upload details — Project name and version, number of components analysed, file size, upload time, and a direct link to the project in Dependency Track.
PR comments — Success or failure messages posted as PR comments.
Error guidance — If the upload fails, the task reports an error message with configuration details to assist troubleshooting.

The SBOM upload status check runs independently from the policy checks. You can enable SBOM upload (depTrackEnabled: true) without enabling the Dependency Track policy check (by omitting deptrack from the policies list).

Dependency Track Policy Check

The Dependency Track policy check (enabled by adding deptrack to the policies parameter) queries your Dependency Track server for policy violations and fails the build if any are found. This is independent from the SBOM upload and can be used without it.

- task: scanoss@1.3.0
  displayName: "SCANOSS Code Scan"
  inputs:
    policies: deptrack
    depTrackEnabled: true
    depTrackUrl: $(DT_SERVER_URL)
    depTrackApikey: $(DT_API_KEY)
    depTrackProjectName: "my-project"
    depTrackProjectVersion: "1.0.0"
    apiUrl: $(SCANOSS_URL)
    apiKey: $(APIKEY)

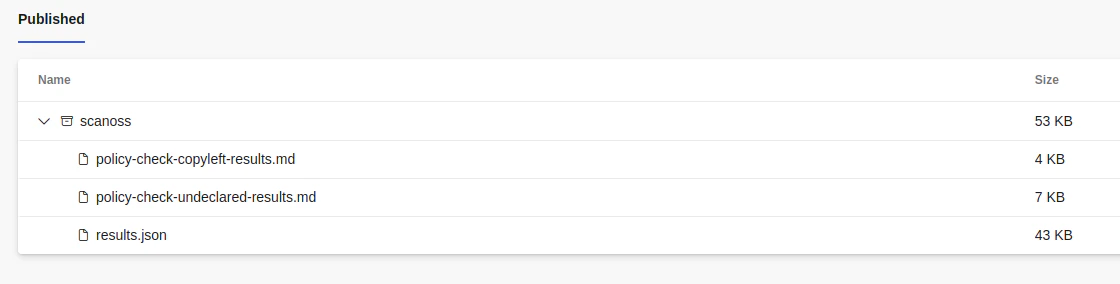

Artefacts

Scan results and policy check outcomes are uploaded to the artefacts folder of each pipeline run, regardless of how the pipeline was triggered. To access them, navigate to your pipeline run in Azure Pipelines and open the Artefacts section.

A full example pipeline demonstrating all of the above features is available in the SCANOSS ADO Integration Demo.
